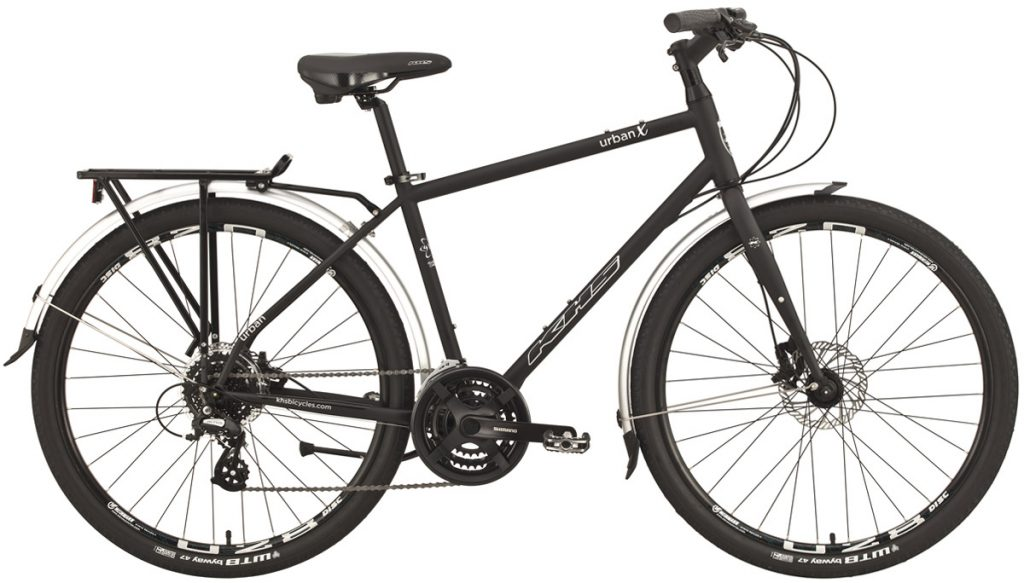

KHS Urban-X

KHS Urban-X
Color: Matte Black
Size: Small
Please select options Unavailable


- 24-speed
- 4130 CrMo steel frame
- Internal cable routing
- Hydraulic disc brakes


Frame 4130 Dbl Butted CrMo Tubing and Carrier Bosses, Forged Disc Mount
Fork Hi-Tensile Unicrown Straight Blade, 1-1/4 Tapered
Rims Weinmann Alloy U28, Disc Double Wall, 27.5x32H
Hubs Front: KT Alloy Disc, QR w/Rubber Seal
Rear: KT Alloy Disc, QR w/Rubber Seal, Cassette
Spokes 14G Stainless Black, 32x32
Tires WTB Byway, 27.5x47
Bottom Bracket Cartridge Bearing
Crankset Shimano FC-TY301, 48/38/28T, 170mm, W/CG
Shifters Microshift TS39 Triggers, 3x8
Front Derailleur Shimano FD-TY710, 28.6
Rear Derailleur Shimano Altus M310
Cassette/Freewheel Shimano CS-HG318, 11-34T, 8-speed
Chain KMC Z8.3
Brakes Bengal Aries 3,Hydraulic Disc, 160mm Wave12 Rotors
Brake Levers Bengal Aries 3
Handlebars Alloy Trekking, 630mm, 31.8
Tape/Grips Q2 Ergo Lock-On, Dual Density
Stem KHS Alloy Threadless, 25D, 4-bolt
Headset Threadless 1-1/8", Zero Stack
Seatpost Alloy Micro-adjust, 27.2x350mm
Saddle KHS Ultra Comfort, Soft Shell
Pedals Wellgo Full Alloy w/DU Bearing

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Matte Black / Small 756928925979 911829000 0600204001
